Description

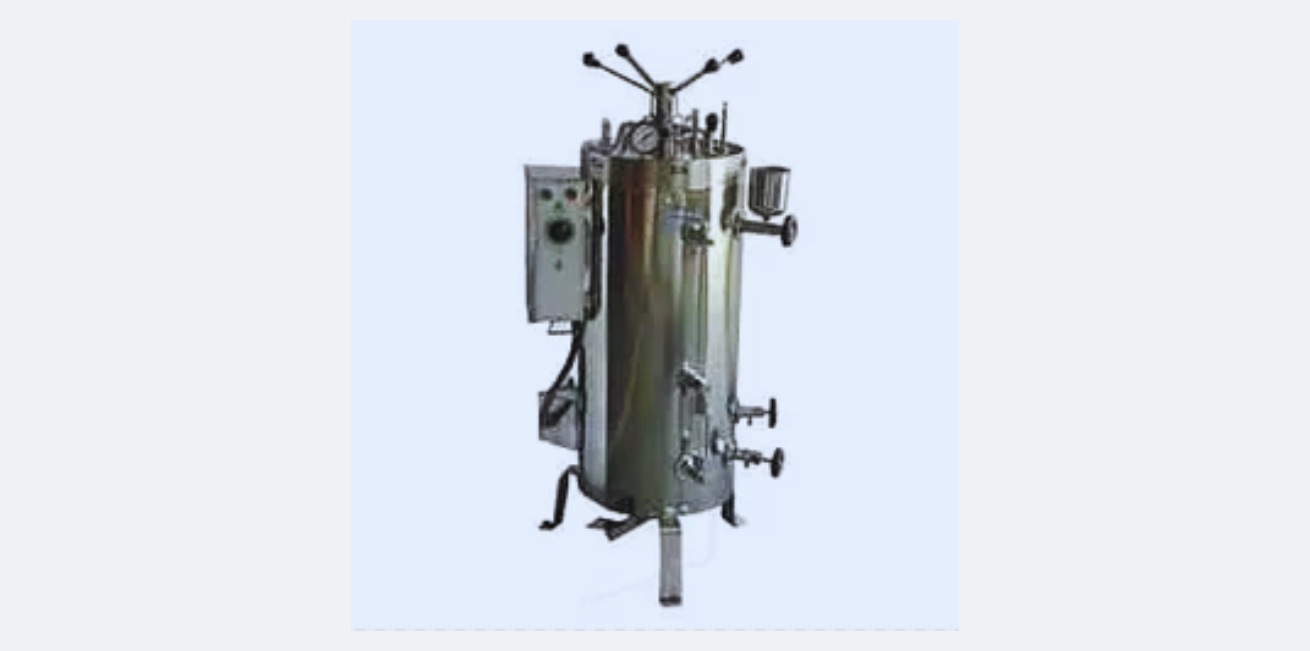

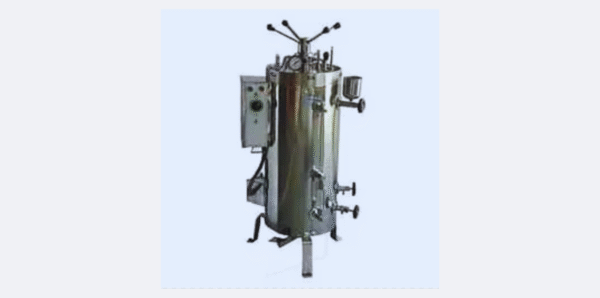

Double walled Vertical Construction with complete SS , Inner chamber made of Stainless steel 304 grade. Jointless Gasket made of High grade Silicon/Neoprene. Unit is available without or with Automatic pressure control switch. Well equipped with pressure gauge, water level indicator spring loaded safety valve, drain cock, steam release cock and immersion type heater, lid is fitted with radial locking mechanism and peddle lifting system Or Wing Nut Mechanism as per Order .Pre Set to work on 15 PSI and 121°Cwith Hydraulically tested upto 30 PSI. Works 230 volt 440 Volt 50Hz.
Semi Automatic Model = Pressure Cut of switch + Low water + Digital Controller & Timer.
|
Technical Specifications |
| Model No. | Inner Dia. x Depth | Capacity Liters | Connected Load KW |
| NU-145 A | 250 x 450 mm | 22 | 2.0 |
| NU-145 B | 300 x 500 mm | 40 | 3.0 |
| NU-145 C | 350 x 550 mm | 50 | 4.0 |
| NU-145 D | 400 x 600 mm | 78 | 5.0 |
| NU-145 E | 450 x 600 mm | 98 | 5.0 |
| NU-145 F | 550 x 750 mm | 185 | 6.0 |
| Optional : a) Pressure cut off Switch. b) Digital temp controller With Timer. c) PLC Controller with Timer, Alarm , Cycle Time and Pressure Indicator and Solenoid Valve With Auto-purging facility. d) HMI (Touch screen) controller with 21 CFR and Real Time Data Monitoring. |
|||
| Note : Please ask for other capacities of your requirement. Customize size also available. |
|||
