Description

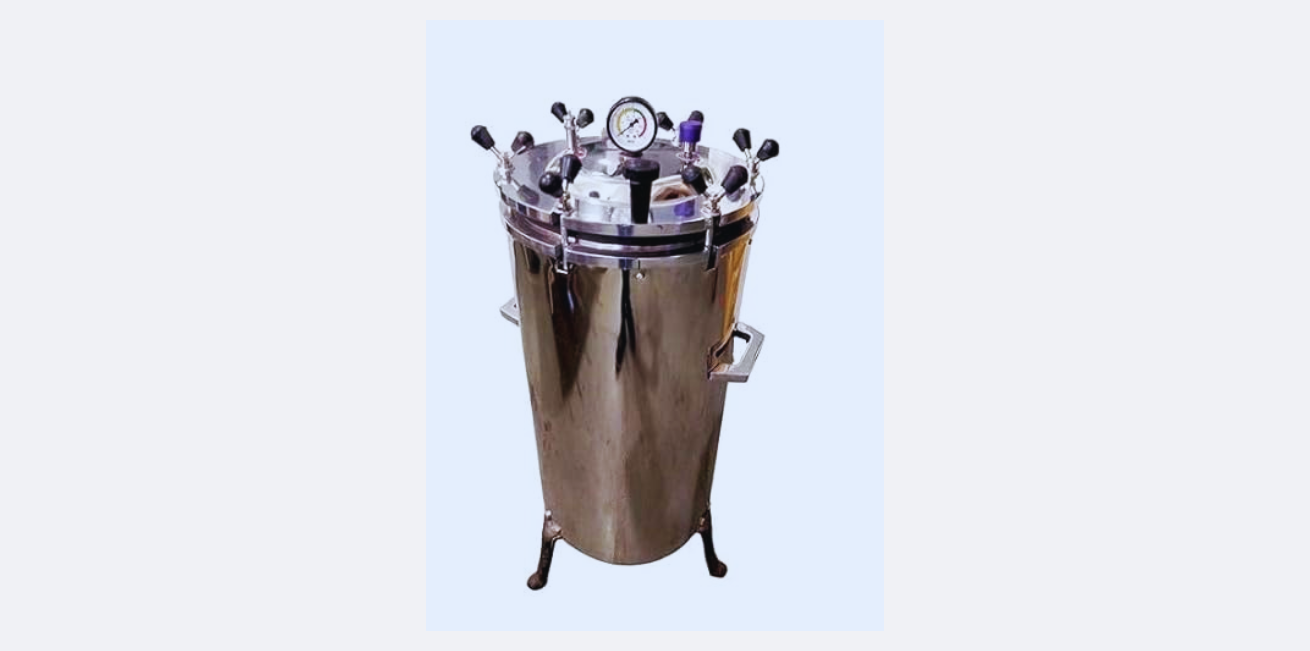

Unit is made of triple walled, inner/Outer made of Stainless Steel, hydraulically tested up to 40 psi. Fitted with Pressure gauge and automatically controlled pressure Switch, safety valve, Steam release valve, drain cock, and immersion type heater. Jointless Gasket made of High grade Silicon/Neoprene. Adjustment pressure 10-20 PSI. Lid is fitted with radial locking mechanism and foot lifting system. All sterilizers are hydraulically tested upto 2.5 times of working pressure. Jointless neoprene/silicon gasket does not allow leakage. switch To work on 230/440, 50 HZ.
| Technical Specification |
| Model No. | Inner Dia. x Depth | Capacity Liters | Connected Load KW |
| AS-145 A (A) | 300 x 500 mm | 40 | 3.0 |
| AS-145 A (B) | 350 x 550 mm | 50 | 4.0 |
| AS-145 A (C) | 400 x 600 mm | 78 | 5.0 |
| AS-145 A (D) | 450 x 600 mm | 98 | 5.0 |
| AS-145 A (E) | 550 x 750 mm | 185 | 6.0 |
| Optional : a) PLC Controller with Timer, Alarm, Cycle Time and Pressure Indicator and Solenoid Valve With Auto-purging facility b) HMI (Touch screen) controller with 21 CFR and Real Time Data Monitoring. |
|||
| Note : Please ask for other capacities of your requirement. Customize size also available. |
|||
