Description
Stereoscopic Microscope(20×–40×).
Uses

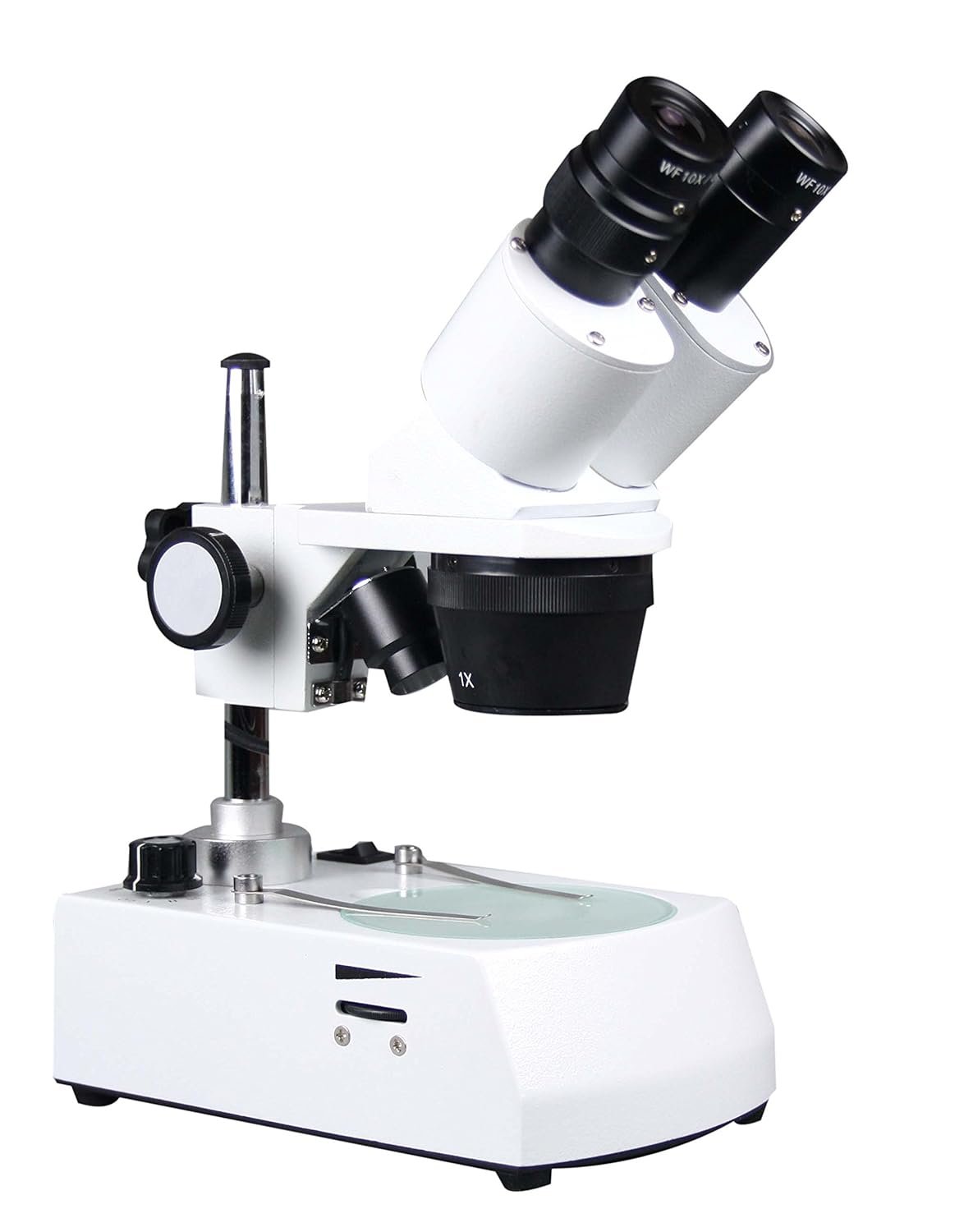

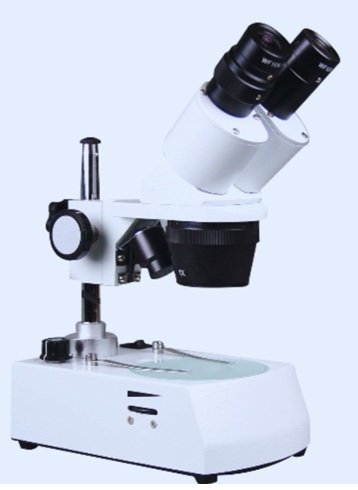

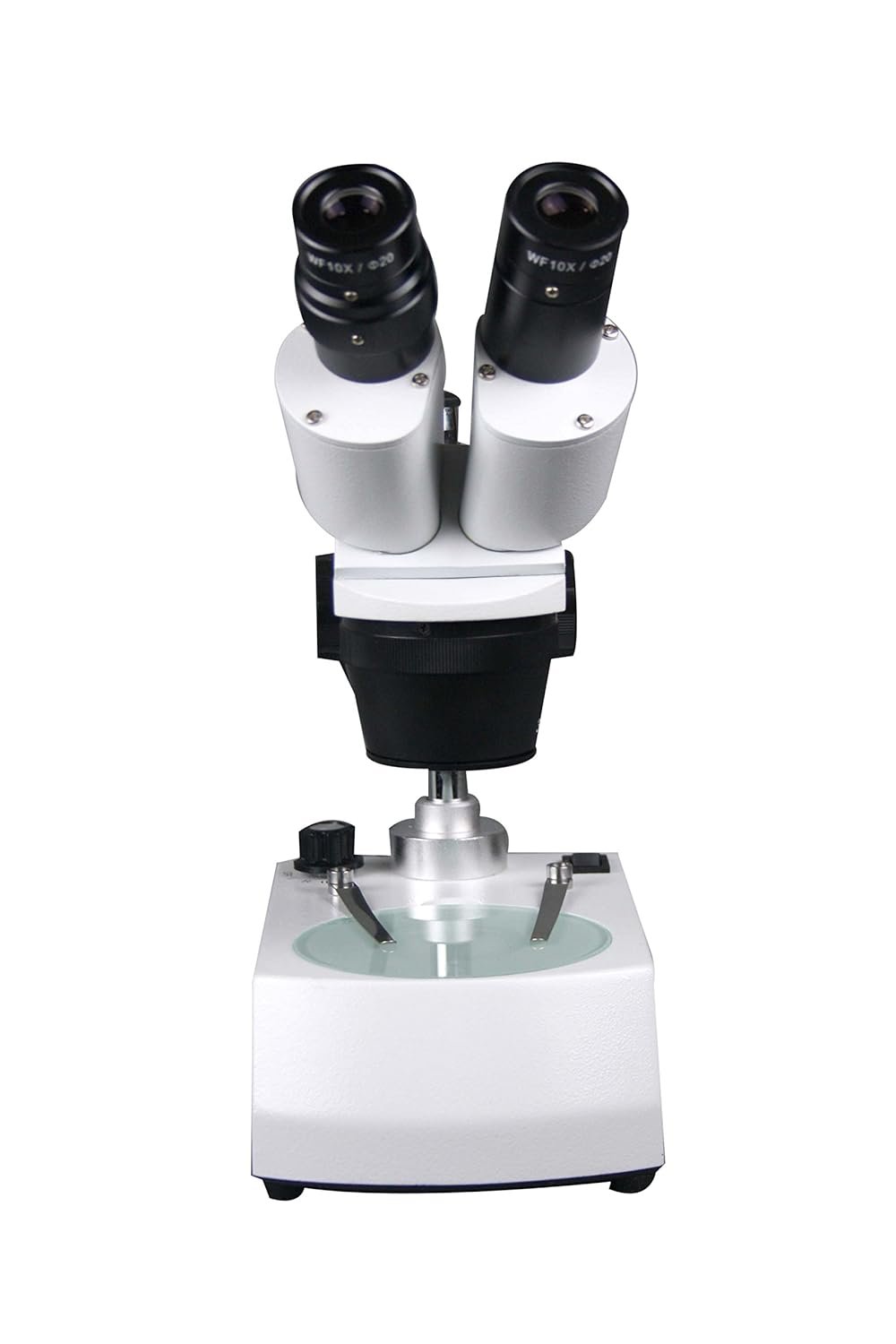

The MX-50 Stereoscopic Microscope is used in areas where you need to observe, inspect, dissect, or assemble small objects in 3D at low to medium magnification (20×–40×).
A stereoscopic microscope provides a 3D view of the specimen, making it ideal for handling, dissecting, and assembling objects while observing them under magnification.
Common Applications
Biology & Zoology Labs – Dissection of insects, plants, and small specimens.
Educational Institutions – Teaching and practical laboratory work.
Electronics Industry – PCB inspection, soldering, and component assembly.
Jewelry & Watch Repair – Examining gemstones, watches, and fine details.
Quality Control & Manufacturing – Inspection of small parts and defects.
Medical & Research Laboratories – Sample preparation and examination.
Entomology & Botany – Studying insects, seeds, leaves, and plant structures.
Forensic Science – Examination of trace evidence and small objects.
Specification
Optical System
Binocular head with 45° inclined viewing angle
Magnification: 20× – 40×
2× and 4× revolving achromatic objective lenses
WF10×, 30 mm diameter multilayer-coated eyepieces
Working distance: 57 mm
Rack & pinion fine focusing system
Illumination & Stage
Dual LED illumination:
Incident (top) light
Transmitted (bottom) light
Adjustable light intensity control
95 mm reversible black/white stage plate
95 mm frosted glass plate for transmitted light
Mechanical Features
Binocular head adjustable on pole-type stand
Stable base with integrated illumination controls
Power Supply
220–230 V AC, 50 Hz
Standard Accessories
Dust cover
Cleaning cloth
Black & white stage plate
Thermocol box packing
Applications
Biological dissection
Inspection and quality control
Electronics assembly and repair
Jewelry and watch examination
Educational and research laboratories
Magnification Range: 20×–40×
Working Distance: 57 mm
Viewing Head Inclination: 45°
Illumination: Dual LED (Top & Bottom)
Stage Diameter: 95 mm
