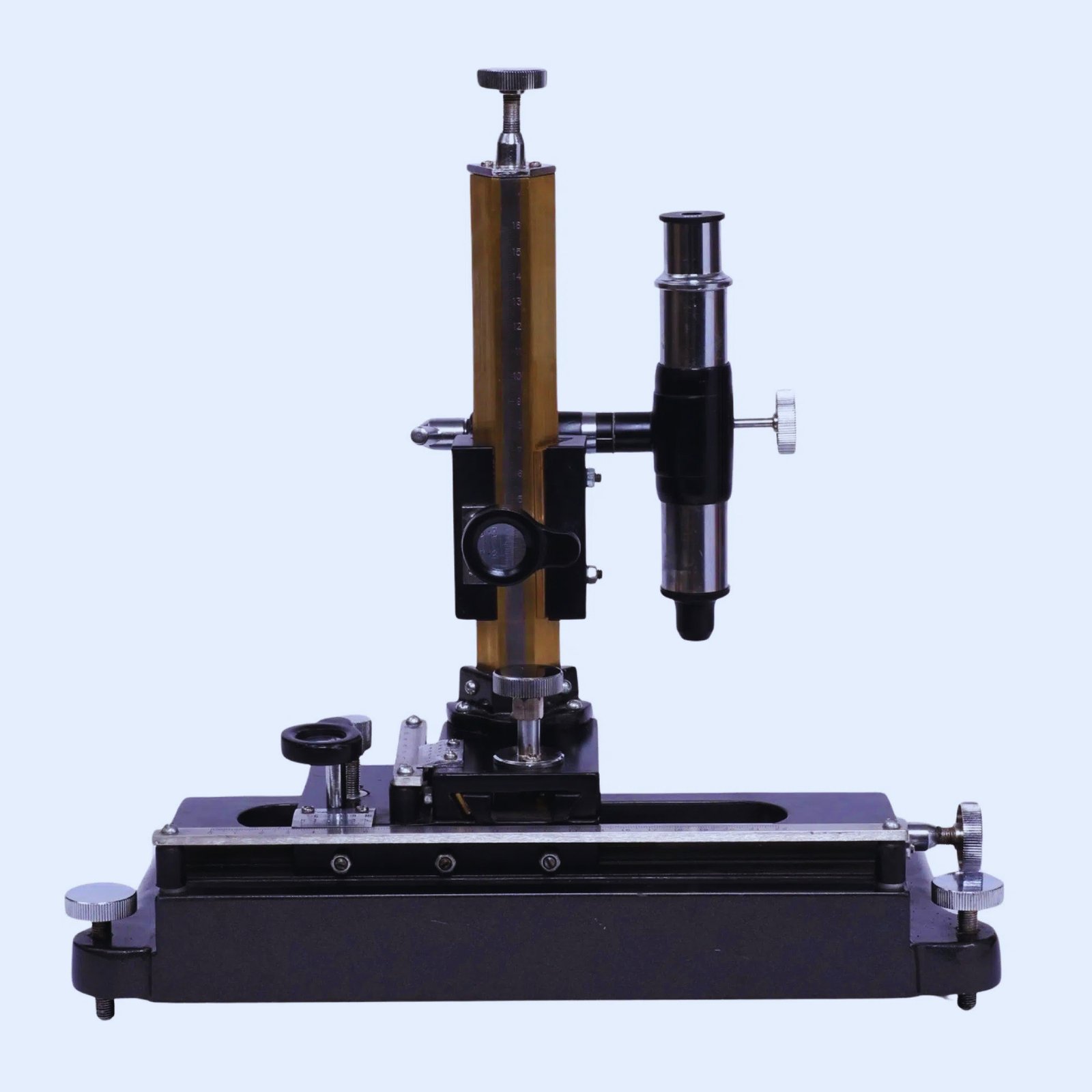

With horizontal and vertical scales. The bed is of cast iron and accurately machined. The horizontal carriage is machined and inters ground on the guide ways of the horizontal bed. The carriage is fitted with vertical brass pillar carrying a microscope tube on a ground fitted vertical carriage. The base is fitting with two levelling screws Horizontal scale is 20cms and vertical 15cms. Long. Both the horizontal scale and vertical carriages are provided with slow motions, which travels app. 3cms in one traverse. Microscope tube is provided with rack & pinion. A milk white Perspex platform is provided on the horizontal bed. Vernier constant 0.001cms. Complete in well-polished wooden case.Having stainless steel scale.

Category: MICROSCOPES

Travelling Microscope, Accuracy: 0.1 mm, Magnification: 10x AS(ASTM-901) ) HSN CODE 9011

Request For Enquiry

Download Brochure

Ask a question

Delivery & Return

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guarantee Safe
Checkout

Description
Reviews (0)

Description

Cast iron Heavy bas has leveling screws

Horizontal Scale 220mm graduated with every cm

numbered

Vertical 150mm scale graduated with every cm numbered

Verniers reading to 0.01mm.

Microscope fitted with 75mm objective and 10X eyepiece hair.

Microscope tube can be set vertically or horizontally Rack and Pinion fine focusing knob.

Standard Accessories Reading Magnifier, dust cover, plywood box Instruction Manual

TRAVELING MICROSCOPE Model ASTM 901

Equipped with micrometer heads reading to 0.01mm
